How to get your data in

Sometimes it is necessary to get data or code into the TRE. As the TRE is shut off from the internet this presents a challenge. This guide explains how to do this.

Copying text in

A small amount of text can be pasted in from external systems using the Clipboard tool. This does not allow copy/paste out. This might, for example, be useful should you need to copy in a difficult to write function.

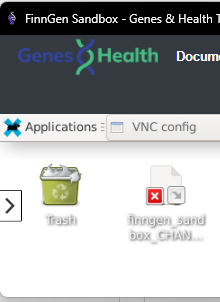

First select the horizontal chevron on the left-hand-side of the TRE:

TRE tools chevron

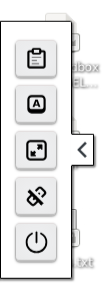

This will reveal the TRE tools:

TRE tools

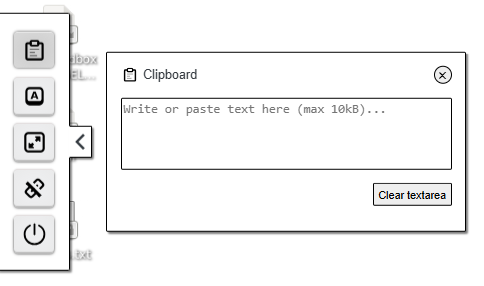

Click on the "Clipboard" button:

Clipboard tool

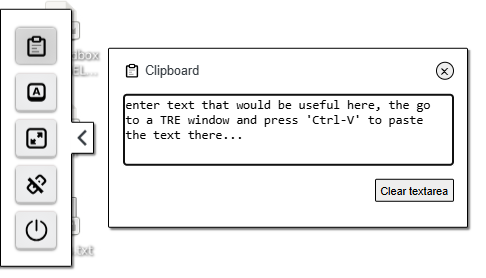

Paste your external text/code/data (up to 10kB) into the text box using Ctrl-V (or Mac equivalent):

Clipboard tool with text

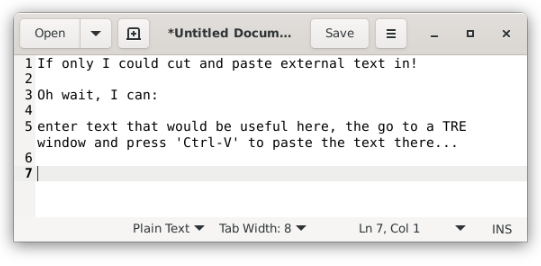

Go to a TRE terminal/text editor/application and paste in the external text using Ctrl-V (or Mac equivalent):

pasted text

Uploading user data into the TRE

You can upload data to your Sandbox specific green-uploads bucket, which you can find using the table below:

Sandbox Link to green-uploads bucket
Sandbox 1 - QMUL +WSI Core Team Desktop https://console.cloud.google.com/storage/browser/qmul-production-sandbox-1_greenuploads
Sandbox 2 - External Academic Desktop https://console.cloud.google.com/storage/browser/qmul-production-sandbox-2_greenuploads
Sandbox 3 - GSK Desktop https://console.cloud.google.com/storage/browser/qmul-production-sandbox-3_greenuploads
Sandbox 4 - BMS Desktop https://console.cloud.google.com/storage/browser/qmul-production-sandbox-4_greenuploads
Sandbox 5 - MSD Desktop https://console.cloud.google.com/storage/browser/qmul-production-sandbox-5_greenuploads
Sandbox 6 - Takeda Desktop https://console.cloud.google.com/storage/browser/qmul-production-sandbox-6_greenuploads
Sandbox 7 - Pfizer Desktop https://console.cloud.google.com/storage/browser/qmul-production-sandbox-7_greenuploads
Sandbox 8 - S00050_FFAIR-PRS Desktop https://console.cloud.google.com/storage/browser/qmul-production-sandbox-8_greenuploads
Sandbox 9 - Maze Therapeutics Desktop https://console.cloud.google.com/storage/browser/qmul-production-sandbox-9_greenuploads
Sandbox 10 - Novo Nordisk Desktop https://console.cloud.google.com/storage/browser/qmul-production-sandbox-10_greenuploads
Sandbox 11 - University of Exter https://console.cloud.google.com/storage/browser/qmul-production-sandbox-11_greenuploads
Sandbox 13 - AstraZeneca https://console.cloud.google.com/storage/browser/qmul-production-sandbox-13_greenuploads
Sandbox 14 - External Academic, Consortium access https://console.cloud.google.com/storage/browser/qmul-production-sandbox-14_greenuploads
Sandbox 15 - 5 Prime Sciences https://console.cloud.google.com/storage/browser/qmul-production-sandbox-15_greenuploads
Sandbox 16 - Sandbox 16 https://console.cloud.google.com/storage/browser/qmul-production-sandbox-16_greenuploads
Sandbox 17 - Academic, NHS Digital access https://console.cloud.google.com/storage/browser/qmul-production-sandbox-17_greenuploads

Once uploaded, please email hgi@sanger.ac.uk with the names of the files/directories you'd like to be transferred and which Sandbox you like them to be transferred to.

Patient identifying data

Please do not transfer any patient identifying data to the G&H TRE, for example data containing patient names, NHS numbers, dates of birth, etc.

Tip

Please be aware at present, all users in your sandbox can see all data that is being stored in the green library. For this reason, it is important that you do not upload any data that you do not want other users to see.
