Handling files and folders

There are four main scenarios to consider when using files and folders in the G&H TRE:

1. Moving files or folders from a GCS bucket to your home directory
2. Moving files or folder from your home directory to the red GCS bucket
3. Creating/renaming/moving/deleting files and folders in the red GCS bucket
4. Creating/renaming/moving/deleting files and folders your home directory

All operations mentioned in items 1, 2 and 3 above can be completed using gcloud storage commands. All operations in item 4 can be performed using standard unix/linux shell commands (e.g. cp, mv, rm, mkdir) or the File Manager GUI.

Some operations involving the red GCS bucket can also be performed using the “Upload to red bucket” option in the File Manager.

All operations can also be perfomed by "mounting" a red directory to your home directory.

All these options are described below with the latter two detailed in the "Alternatives to gcloud storage" section.

Reminders

• Google Cloud Services (GCS) buckets are explained in the "Understanding TRE folders and buckets" section.
• library-red is a read-only bucket for TRE users, you cannot add to it or make any changes to it.
• Your home directory "belongs" to the virtual machine. It behaves like a standard unix/linux files system. Its actual path is /home/ivm/.

Google Cloud Services’ gcloud storage

What is gcloud?

gcloud is the Google Cloud Services' Command Line Interface (CLI): a set of tools to create and manage Google Cloud resources. gcloud has multiple "groups" which handle a specific aspect of the Google Cloud. For example, gcloudsql handles the creation and management of Google Cloud SQL databases and gcloudsource handles Google Cloud git repository commands.

The only gcloud group of relevance to G&H TRE users is the storage group. gcloudstorage handles the creation and management of Google Cloud Storage buckets and objects (files).

gcloudstorage documentation can be found in the gcloud storage reference website.

What if I’m using gutils?

TL:DR

Don't use gutils

Some of you may have been using gutils to manage Cloud Storage buckets and objects. The gutils commands are now deprecated.

• Google states: "Important: gsutil is not the recommended CLI for Cloud Storage. Use gcloud storage commands in the Google Cloud CLI instead."
• The gsutil tool does not support working with newer Google Cloud Storage’s features such as soft-delete. This means that gsutil removes all versions of a file, whereas gcloud storage only removes the latest version.
• Bucket versioning is active in sandboxes as part of the backup strategy (so we can recover an old version of a file for users). If you delete with gutils, we may not be able to recover the file(s).

Fundamental gcloud storage operations

Reminder

You need to identify GCS buckets using their Uniform Resource Locator (URL), for example, the URL for the red bucket on sandbox-1 is: gs://qmul-production-sandbox-1-red/.

URLs for G&H TRE buckets are given in the "What's in the bucket?" section.

Warning

gcloud storage replicates common linux file and directory handling commands.

• These commands are powerful, you could easily accidentally delete entire directories or rewrite files.
• Read the gcloud storage documentation.
• Consider backing up data before uploading or downloading it to/from a google bucket.
• Consider copying over moving (at least one copy of your files should remain).
• The gcloud storage copy (cp) and move (mv) operations are non-atomic. This means it is not an all or nothing (completes or doesn’t complete) command; rather, it performs a copy from source to destination followed by, for move operations, deleting the each source object. If the command does not complete, you may end up with some files copied/moved/renamed and others not.
• In addition to normal network and operation charges, if you move a Nearline Storage, Coldline Storage, or Archive Storage object, deletion and data retrieval charges may apply.

Creating a new directory (in red)

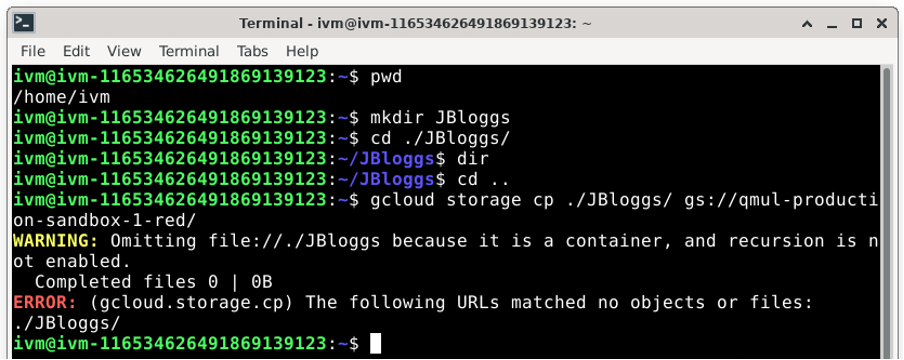

If you want to create a new directory in red, you must upload one into it. Remember that the concept of a directory does not rightly exist in Google Cloud buckets; buckets store files not directory trees. This means that you cannot just upload an empty directory into the red bucket. If you try to do so, you will get the following error:

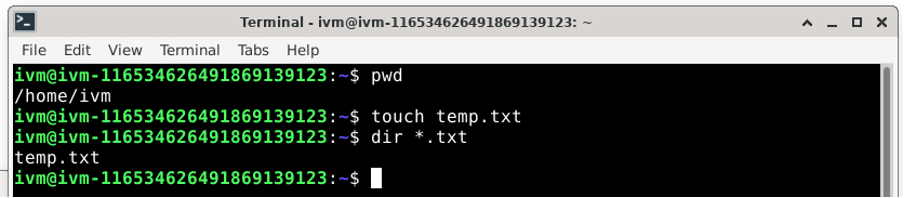

To successfully create a new directory or directory branch in red with gcloud storage you simply need to copy (or move) a file to the red bucket. The simplest is often to create an empty file using the linux touch command.

Now copy this empty file using:

gcloud storage cp [dummy_file] [destination/on/red/bucket/]

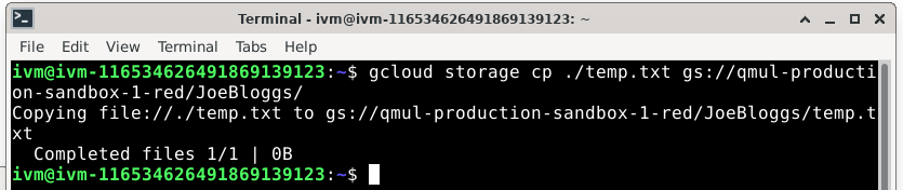

So for example:

Do not forget to end the destination location with a / (forward-slash). If you do not, you will copy temp.txt into a file called JoeBloggs on the red folder.

You could also simply move the file using:

gcloud storage mv [dummy_file] [destination/on/red/bucket/]

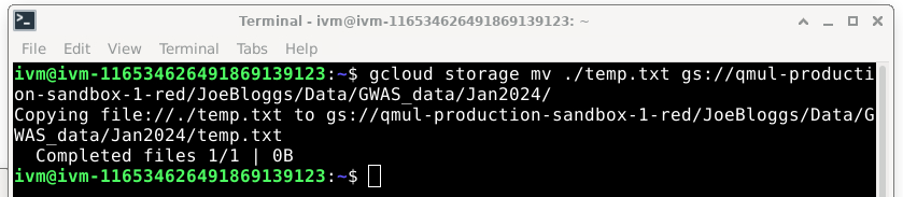

You can create further subdirectories by specifying them in the destination location. For example, if you wanted to create /red/JoeBloggs/Data/GWAS_data/Jan2024, you would do the following:

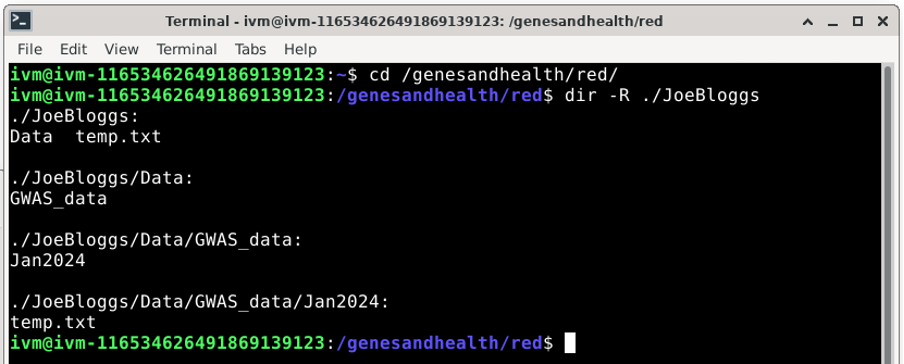

You now have created all the (virtual) sub-directories along the way:

Please note that this will only upload new files or directories (as long as they contain at least one file or non-empty subdirectory) to the red bucket. Pre-existing files in red will not be affected. For example, you can see that the temp.txt file we created in /red/JoeBloggs/ when we used the gcloud storage cp ./temp.txt gs://qmul-production-sandbox-1-red/JoeBloggs/ command is still there. However, if you delete all files in a red bucket directory, you will also delete the virtual directory they are in.

In the example above, if you delete /red/JoeBloggs/Data/GWAS_data/Jan2024/temp.txt, you will lose directories Jan2024, GWAS_data and Data because all of these would end up empty.

Listing all buckets and files: ls command

gcloud storage ls [PATH …]

You can use wildcards to match multiple paths, e.g.

gcloud storage ls gs://qmul-production-sandbox-1-red/JoeBloggs/Data/GWAS_Data/Jan*/*.csv

This will list all .csv files in any directory in GWAS_Data which starts with Jan (e.g. Jan2022, Jan2023, Jan2024).

Using standard bash commands

Remember that GCS buckets on the TRE can also be identified using a standard unix-type path. For certain operations, such as ls this may be both easier and more efficient, so instead of the above command, you could use:

ls /genesandhealth/red/JoeBloggs/Data/GWAS_Data/Jan*/*.csv

---

Uploading, downloading, and copying

The general format is:

gcloud storage cp [SOURCE …] DESTINATION

We have seen how to upload files to Google Cloud with cp above when learning how to create a directory.

---

Copying an entire directory tree (i.e., directory, subdirectory, and all its content)

Use the --recursive option to copy an entire directory tree. The following command “uploads” the directory tree dir to the red directory:

gcloud storage cp --recursive dir gs://qmul-production-sandbox-1-red

Copying to your current (local) directory

In this example, the command will copy (“download”) all .txt files in JoeBloggs to your current local directory:

gcloud storage cp gs://qmul-production-sandbox-1-red/JoeBloggs/*.txt .

[Don’t forget the . at the end.]

Moving and renaming

The general template is:

gcloud storage mv [SOURCE …] DESTINATION

Moving all objects from a local directory to a bucket

gcloud storage mv ./dir gs://qmul-production-sandbox-1-red/JoeBloggs/

Info

All files will be moved from ./dir to /JoeBloggs/ (so will no longer be in local ./dir) but the ./dir and any subdirectories in it will remain in the local directory.

Moving all objects from a bucket to a local directory

gcloud storage mv gs://qmul-production-sandbox-1-red/JoeBloggs/* dir

Renaming a file

gcloud storage mv gs://qmul-production-sandbox-1-red/JoeBloggs/old_name.txt gs://qmul-production-sandbox-1-red/JoeBloggs/new_name.txt

Remember

old_name.txt will be copied to new_name.txt and then old_name.txt will be deleted; if old_name.txt is very large, this may incur data charges.

Alternatives to gcloud storage

The “Upload to red bucket” option in the File Manager

Uploading a file to red

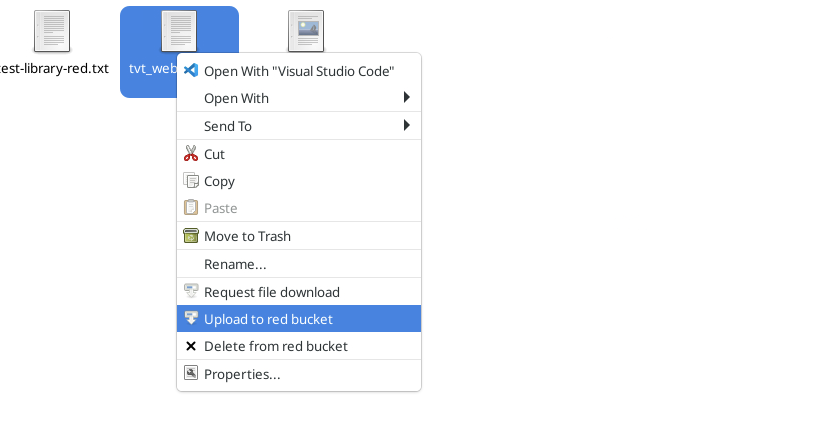

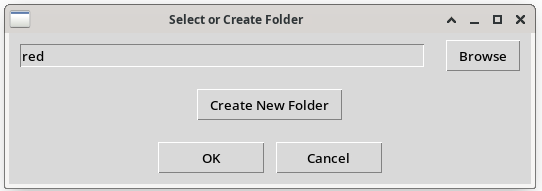

To upload a file to red from another location (here my home folder on ivm), right click on the file and select Upload to red bucket.

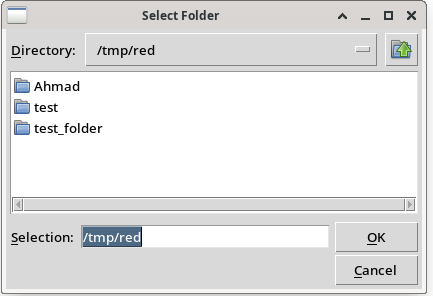

You can click on the Browse button to select a destination directory in red bucket, for example:

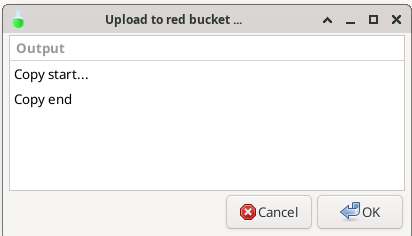

After selecting the destination directory, you can click on OK button to confirm and the file will be uploaded. A confirmation window will appear:

Info

In addition to uploading a single file, you can also upload a complete directory that contains files and subdirectories.

Creating a new directory in red

If you want to create a new directory in red, you can click the Create New Folder button from the same Upload to red bucket window. This will bring up a new dialog box where you can Enter Folder Name:

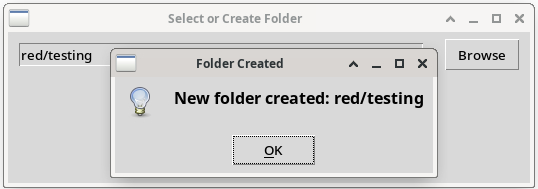

After entering the new directory name and clicking OK button, the new directory will be created.

Creating a sub-directory in the red bucket

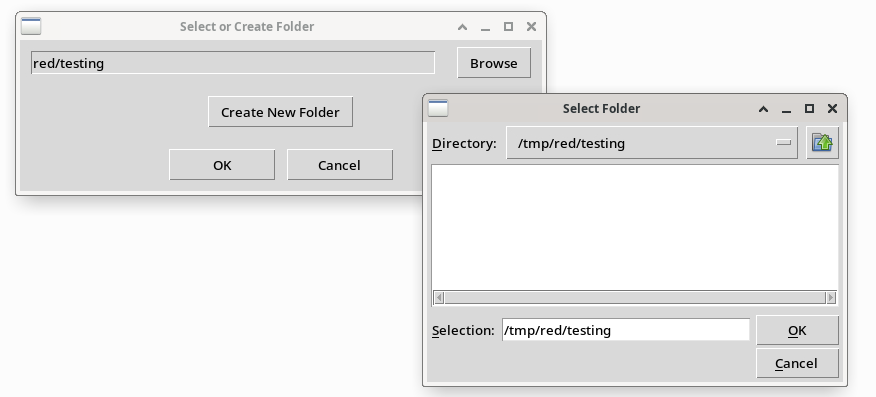

To create a sub-directory in the red bucket, you can folow a similar process to above. First, you will click on Browse button to select the parent directory inside which you will create subdirectory. In this example, I clicked Browse and selected /red/testing floder:

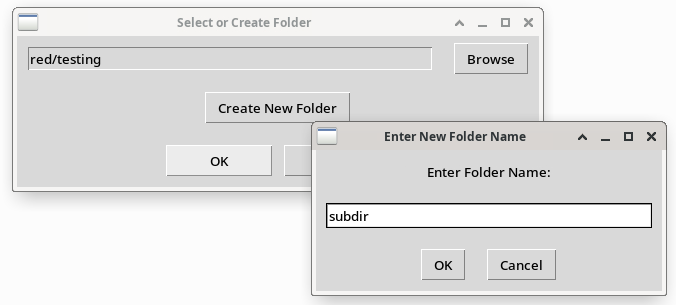

After selecting the directory and clicking OK, you can click on Create New Folder button to create a subdirectory inside /red/testing:

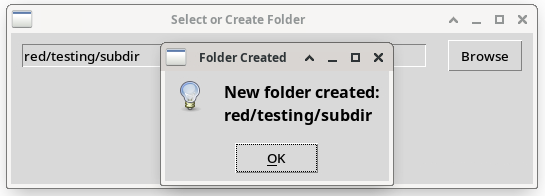

A new subdirectory /red/testing/subdir will be created after confirming with OK button:

Moving or renaming data in the red bucket

This is only possible using gcloud storage.

Mounting the red bucket onto your VM

The red directory is currently available to the G&H virtual machines as read-only and lacks some user permissions. The ability to upload files to a specific sub-directory, moving/editing files directly inside the red bucket, and creating a new directory inside red by using a terminal requires the use of the File Manager “tricks” or the use of gcloud storage commands as described above.

Currently, there is no other GCS space available as read/write. There are on-going discussions with the developers of TRE to make the use of buckets easier for collaboration and sharing and this will hopefully be improved in the future.

As an alternative, you can mount a specific directory from red in your home directory.

Warning

This is an advanced option, you could really mess up your (and other users'!) directories in red. We advise only using this options once you are an intermediate or advanced TRE user who has gained experience of TRE file manipulation using the alternative methods described above.

What is mounting?

Mounting is a process by which a computer's (or in our case, a virtual machine’s) operating system makes files and directories on a storage device (such as hard drive, CD-ROM, network shared drive or cloud storage) available for users to access via the computer's file system.

When you mount a GCS bucket directory onto a virtual machine, you are essentially creating a mirror of the GCS bucket. However, you can handle this locally created mirror (i.e. the mounted directory) as a “normal” linux directory.

Be careful...

• Any change you make to the locally mounted directory will be replicated (mirrored) in the GCS bucket.
• Likewise, if you were to make changes directly in the GCS bucket, these would be replicated (mirrored) in the locally mounted directory.

How to mount a red directory to your VM?

Create a directory in your home directory with:

mkdir /home/ivm/[dir-name]

(Replace the [dir-name] with a directory name of your choice.)

Run the following command to mount a shared team directory from red to /home/ivm/[dir-name]:

gcsfuse --implicit-dirs "$SANDBOX_PROJECT-red" --only-dir 'MY_TEAM_DIRECTORY' /home/ivm/[dir-name]

Note

• All on a single line
• You must use double-quote (") around $SANDBOX_PROJECT-red
• Replace MY_TEAM_DIRECTORY with the name of a directory in red
• You will need to repeat the gcsfuse command on each reboot of your Virtual Machine, as it won't persist.

All the members of your team should be able to run this command to have the same shared files in the /home/ivm/[dir-name] directory.

Mounting: illustrated example

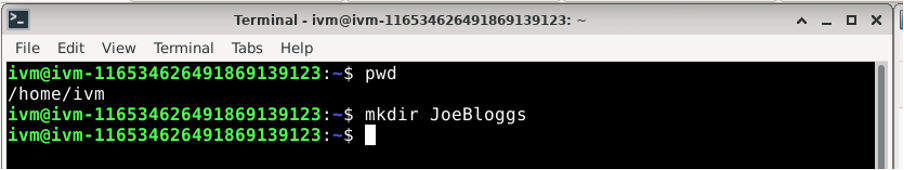

Creates a new (empty) directory on /home/ivm:

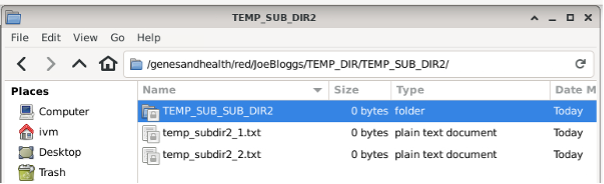

The equivalent directory on red is not empty (it contains several files and sub and sub-sub directories):

Now mount red’s JoeBloggs locally:

Which tells us:

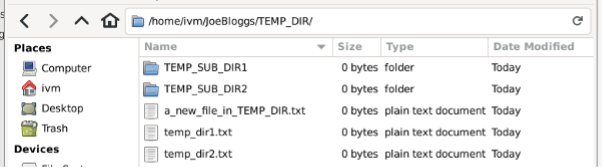

Now look at /home/ivm/JoeBloggs:

All the files, directories, sub and sub-sub directories from red’s JoeBloggs are mirrored.

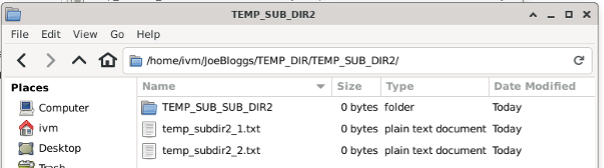

But /home/ivm/JoeBloggs/ “behaves” like any linux directory:

You can add files in any of these various directories:

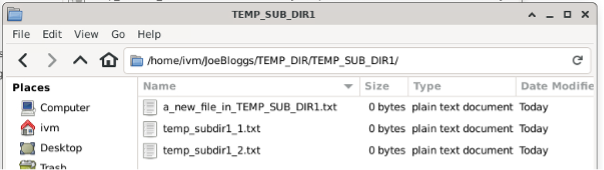

And they appear on the locally mounted JoeBloggs:

And

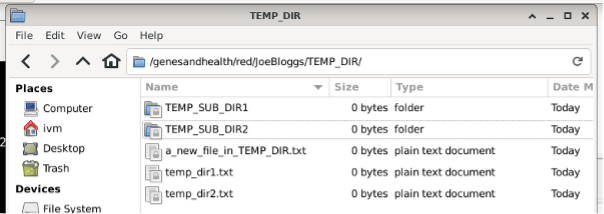

But they also appear in the red GCS bucket!

And

Info

You may have to click the refresh circular arrow in the top right corner to see the changes.

If you delete a file in the GCS red bucket:

The file will also be deleted from the locally mounted mirror:

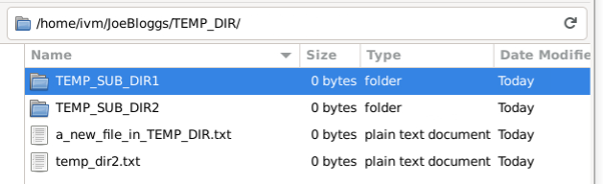

Likewise, if you delete a file in the locally mounted mirror:

The file will also be deleted from the red GCS bucket:
